High-Temperature Pyrolysis & Biochar Soil Amendment
Objective: Designed and operated an on-farm biochar production and activation system to convert woody biomass into stable soil carbon, targeting the enhancement of Cation Exchange Capacity (CEC), soil pH neutralization, and moisture retention in degraded tropical soils.
Challenges: The primary challenges included managing low CEC and high acidity in local weathered soils, eliminating phytotoxic wood oils and tars associated with traditional low-temperature burning, and preventing raw, highly porous biochar from sequestering vital soil nitrogen upon initial application.
Technical Solutions & Implementation

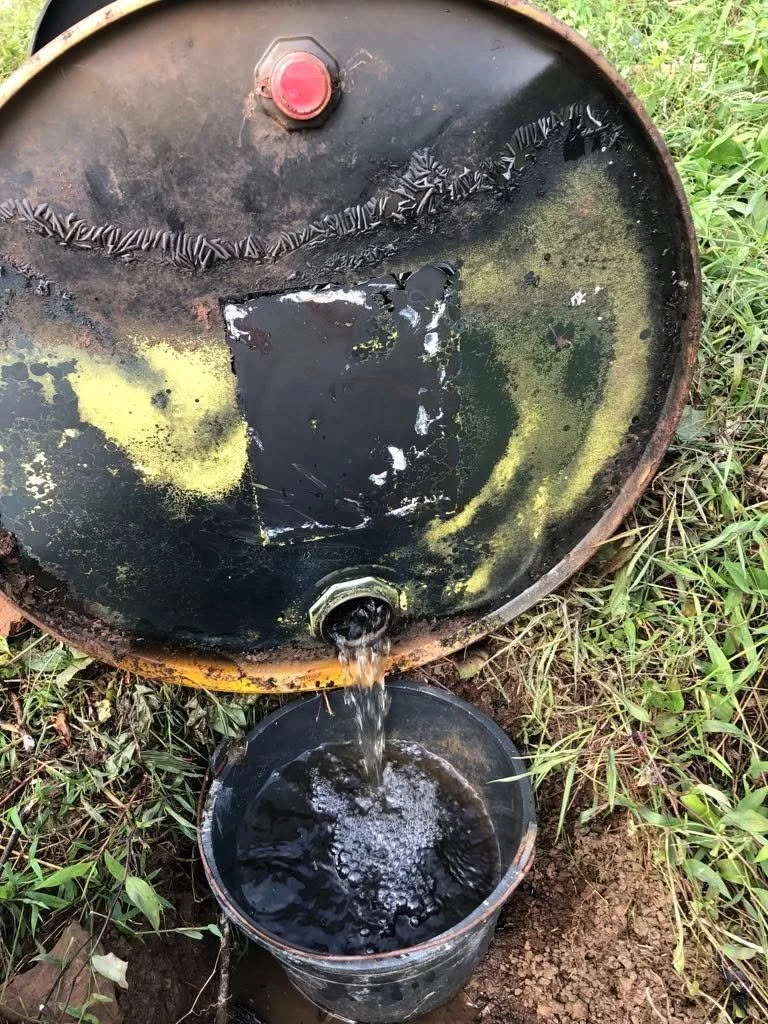

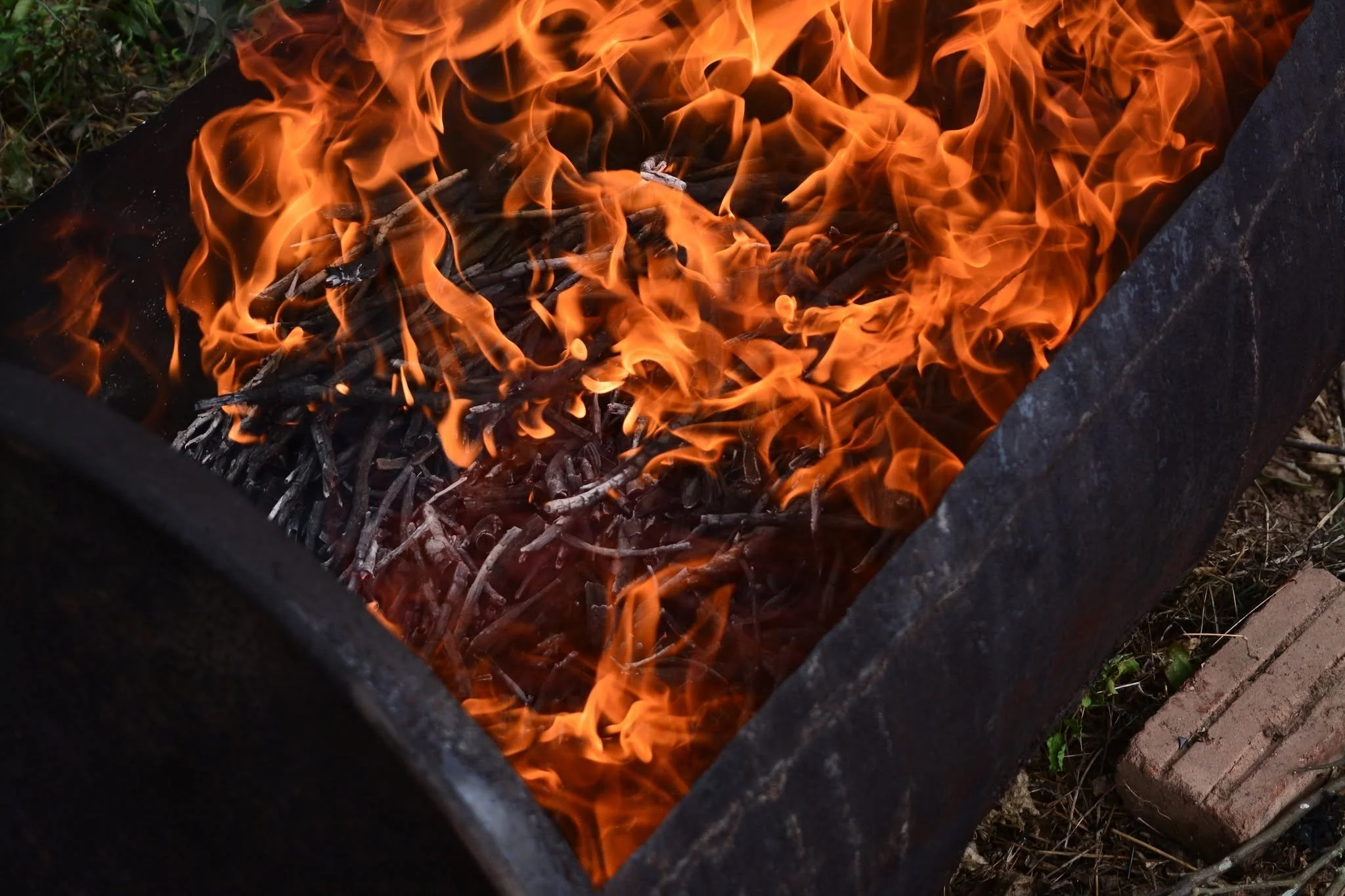

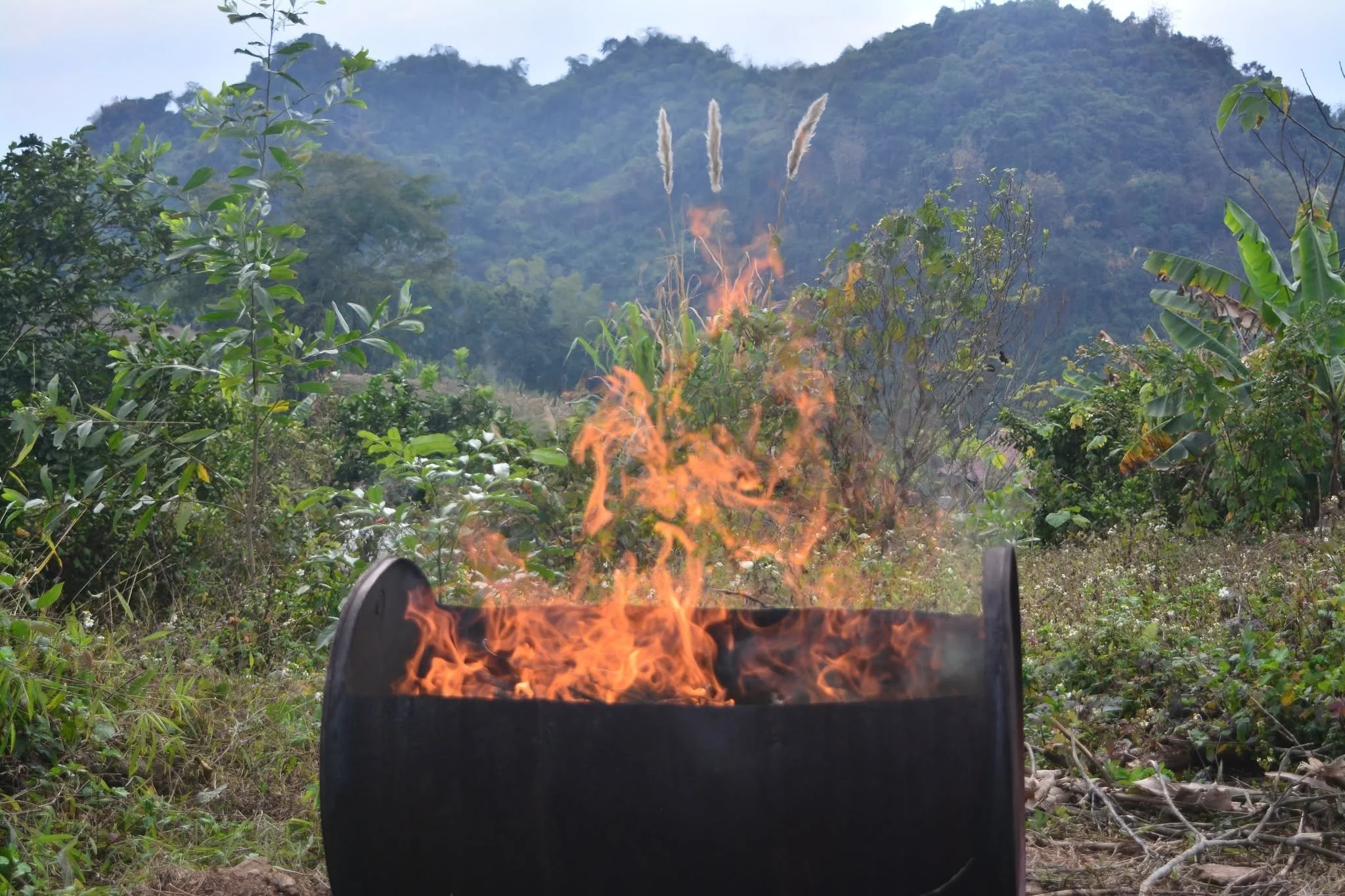

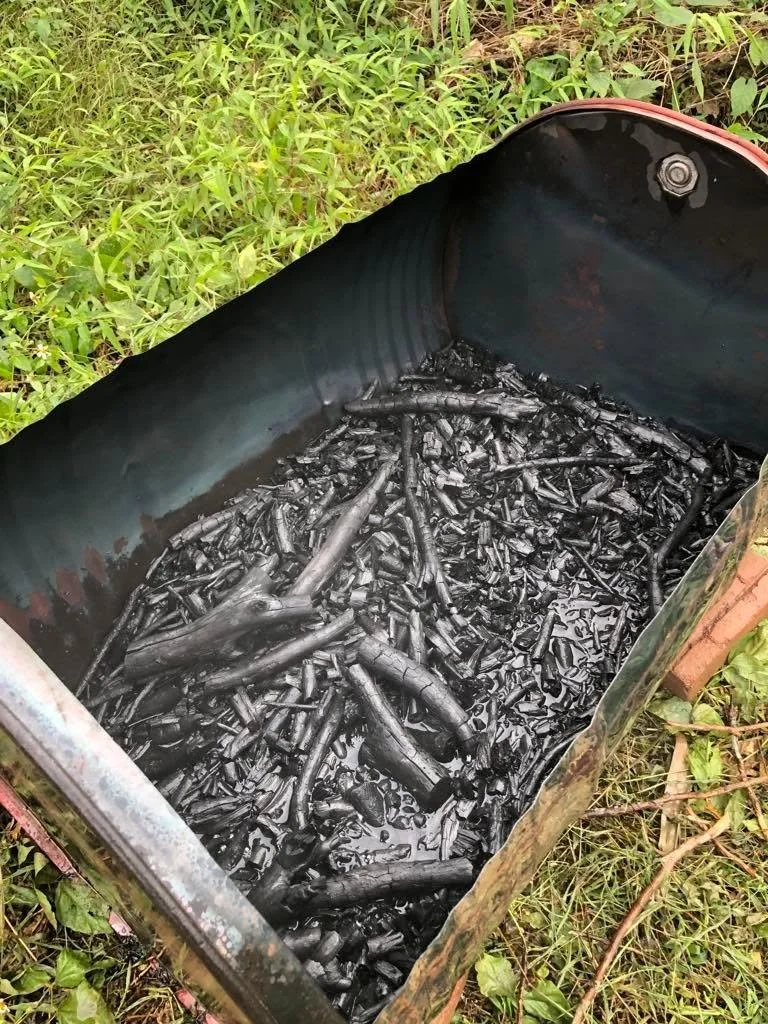

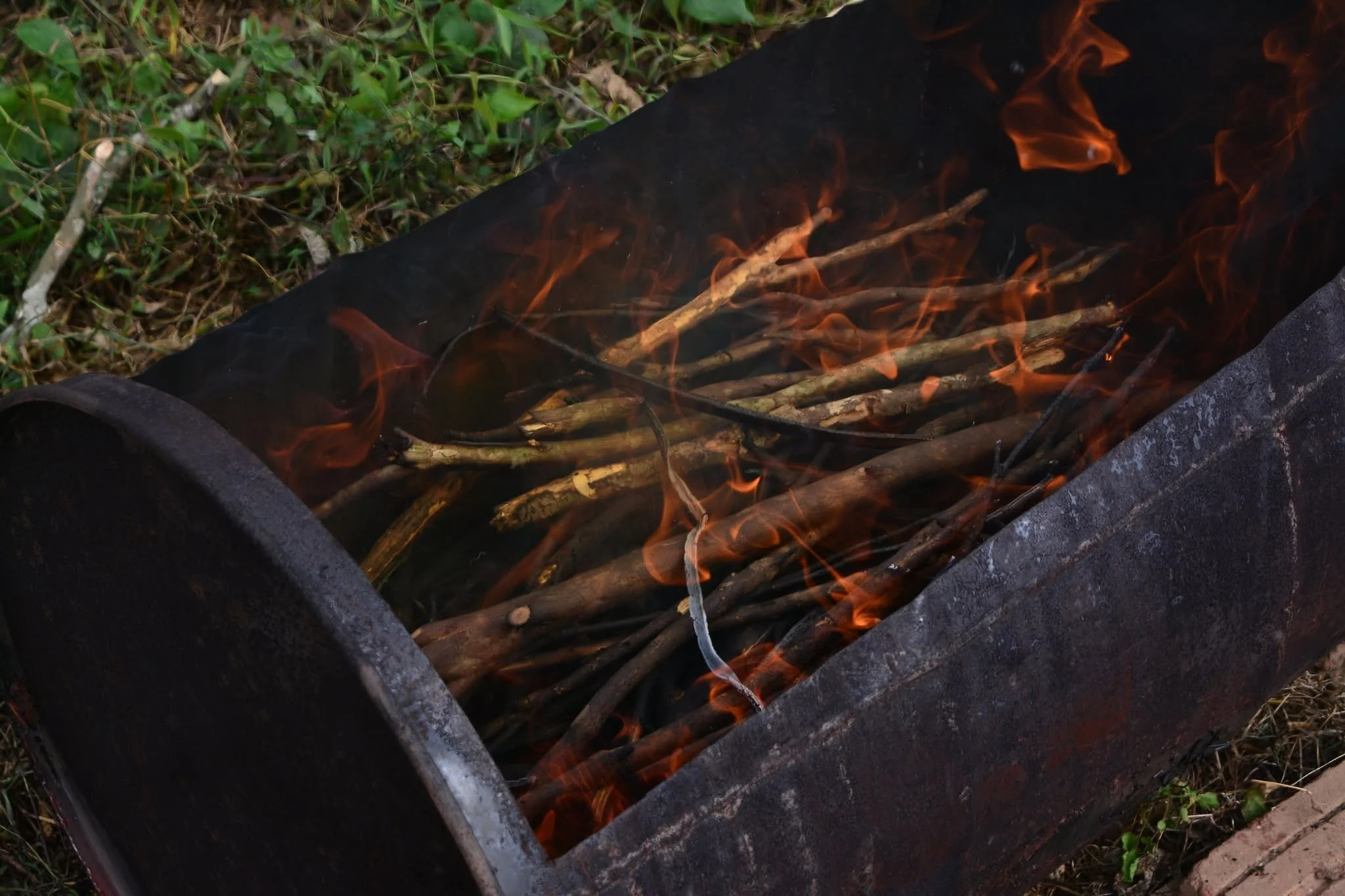

Controlled Pyrolysis Kiln: Constructed a horizontal steel drum kiln operating at elevated temperatures (500–800°C) to fully carbonize dry wood, eliminating harmful tars and maximizing internal surface area. Quenched the material in water to induce thermal micro-fracturing for increased porosity.

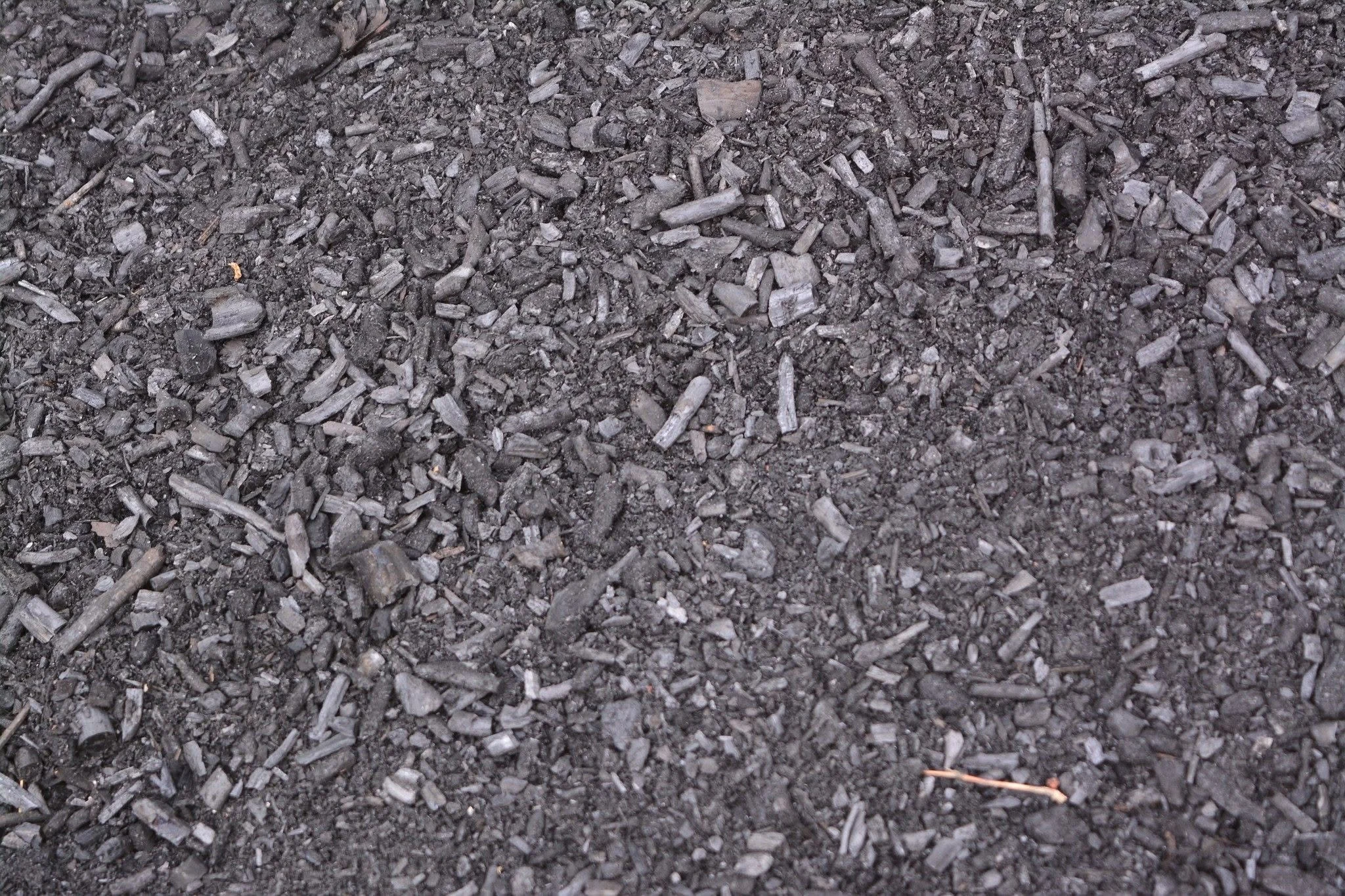

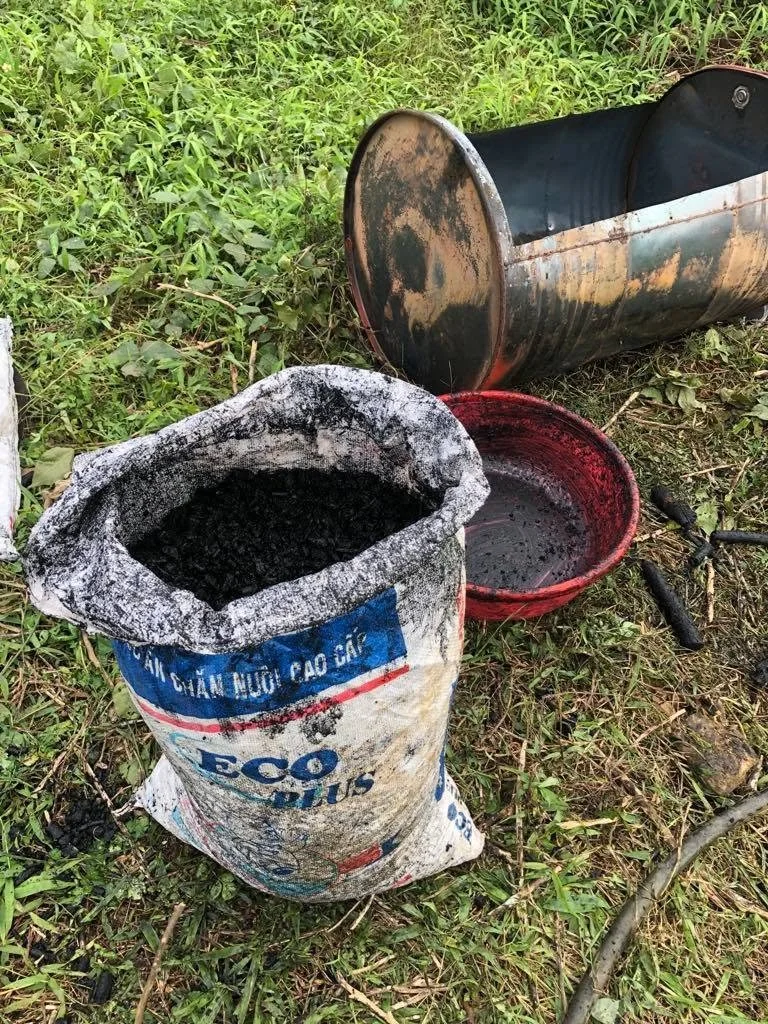

Nutrient Activation Protocol: Mitigated nutrient-stripping risks by pre-conditioning the crushed biochar (0.5cm aggregates) through prolonged soaking in a nitrogen-rich fish amino acid solution, followed by integration into active compost heaps.

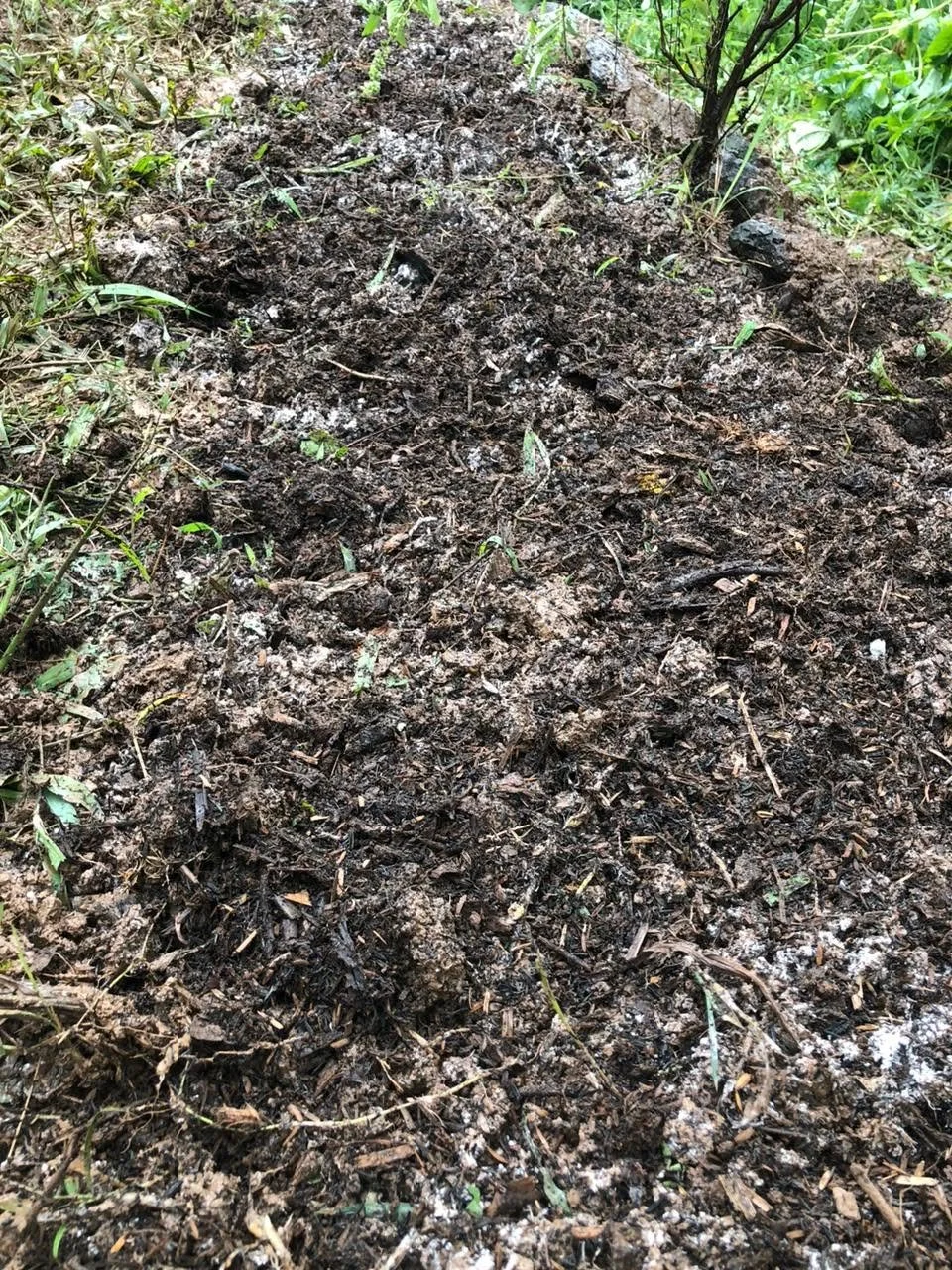

Physico-Chemical Soil Enhancement: Incorporated the activated biochar into garden soil at a 1:10 ratio to permanently elevate soil organic carbon, buffer soil pH to improve nutrient availability (Potassium and Phosphorus), and radically improve water-holding capacity during drought periods.
